Pigsty v2.5: Ubuntu & PG16

GitHub Release | Release Note

On Programmer’s Day (10/24), Pigsty v2.5.0 is released! This version adds support for Ubuntu and Debian operating systems. Combined with existing EL7/8/9 support, we’ve achieved a grand slam of mainstream Linux distributions.

Additionally, Pigsty now officially supports self-hosted Supabase and PostgresML, plus columnar storage extension hydra, LiDAR point cloud extension pointcloud, image similarity extension imgsmlr, extended distance function package pg_similarity, and multilingual fuzzy search extension pg_bigm.

For monitoring, Pigsty has optimized the PostgreSQL dashboard experience, added new Patroni & Exporter dashboards, and redesigned the PGSQL Query dashboard based on query macro-optimization methodology.

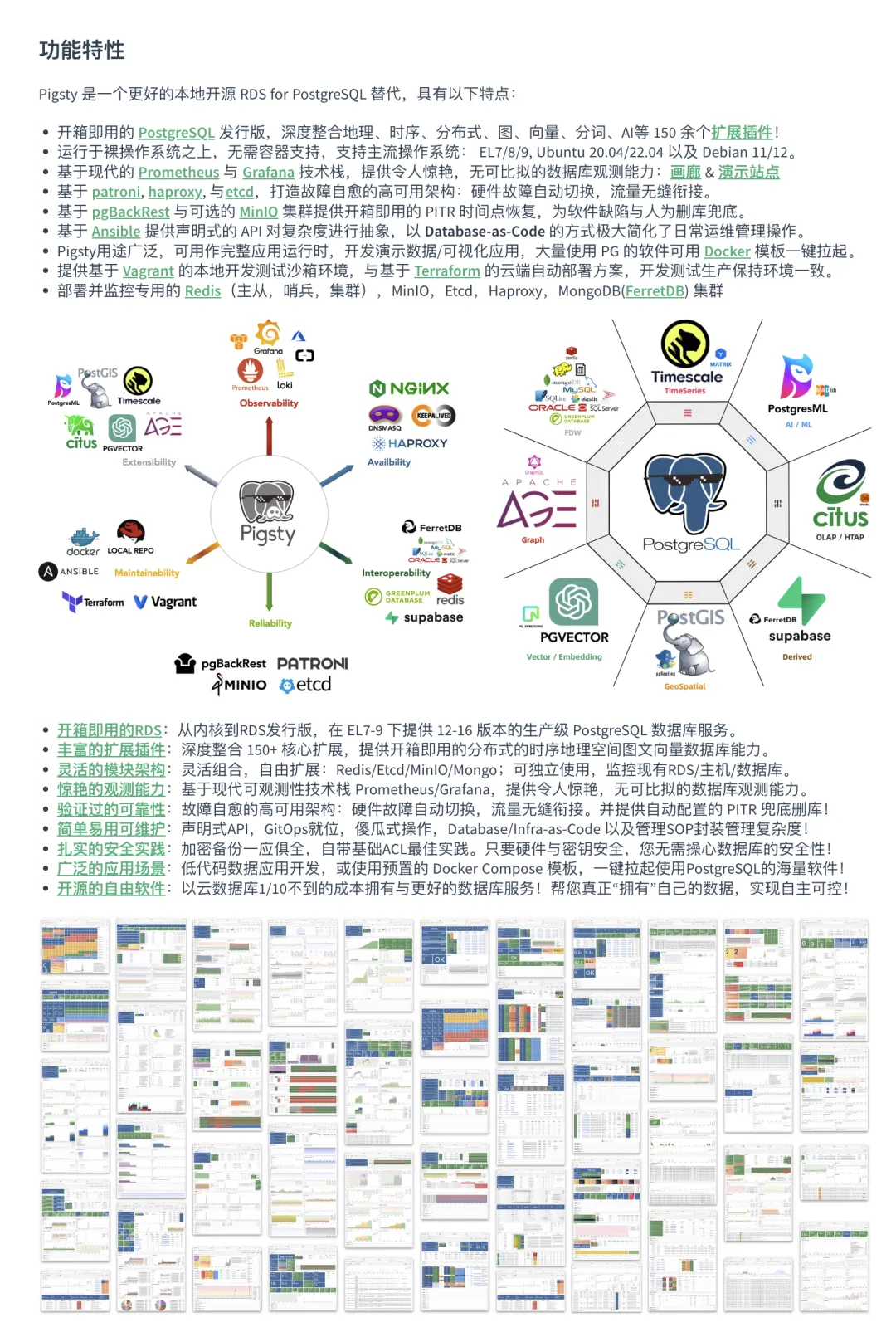

About Pigsty

#

Pigsty is an out-of-the-box PostgreSQL distribution providing a local-first open-source alternative to RDS PostgreSQL. It enables users to run better enterprise-grade PostgreSQL database services at a fraction of cloud RDS costs using pure hardware. For more information, visit https://pigsty.io.

Ubuntu/Debian Support

#

Pigsty now supports Ubuntu and Debian operating systems (referred to as Deb support). Users have been requesting Ubuntu and Debian support since the 0.x era two years ago, so this is something that felt both important and right to do.

As a database distribution that builds on bare operating systems, supporting a new OS isn’t as simple as containerized databases just packaging an image. There’s substantial adaptation work required. The first challenge is package availability — Prometheus, for example, doesn’t have an official DEB repository, so we had to maintain our own packaging and provide a repository.

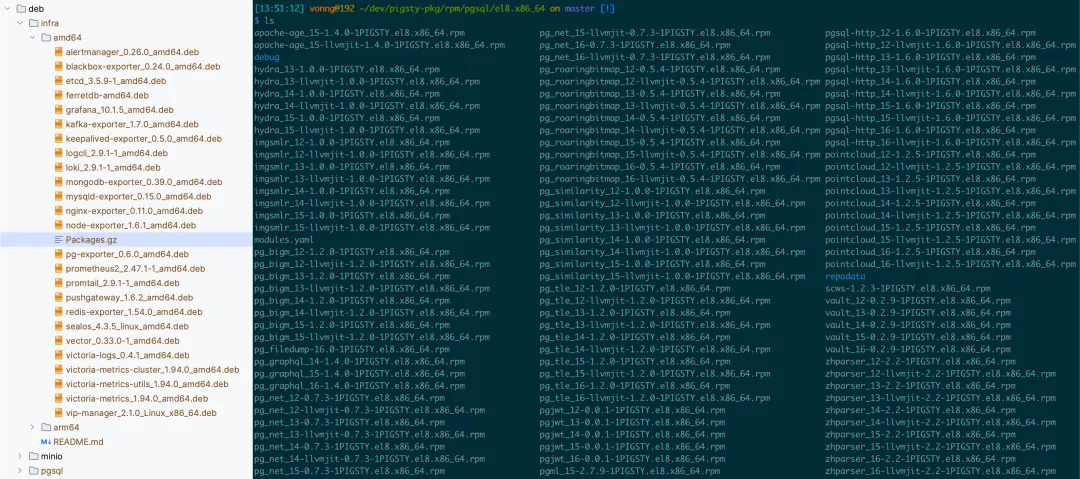

Pigsty-maintained APT/YUM repositories

The massive differences in package management require rewriting the entire bootstrap / local repository build logic for Deb systems. Distro FHS and convention differences need case-by-case handling. You’re not just dealing with PostgreSQL kernel and 100+ extensions — there’s also etcd, minio, redis, grafana, prometheus, haproxy, and various other components. Fortunately, Pigsty has overcome these issues, giving Ubuntu/Debian the same smooth experience as EL 7-9.

One-click Pigsty installation

In terms of user experience, Deb support has an almost identical feature set to EL. The only exception is that Supabase and its specialized extensions haven’t been fully ported yet. Beyond that, Deb has some unique extensions like the chemical formula extension RDKit, LiDAR point cloud extension pointcloud, and extended distance function package pg_similarity (the latter two have been backported to EL). To fully leverage PostgresML + CUDA capabilities, Ubuntu is essential.

Pigsty’s auto-configuration now detects Debian/Ubuntu systems, automatically using the corresponding config template for single-node installations. Deb templates differ from EL in only 8 parameter defaults — package names differ between distributions, so parameters like xx_packages need adjustment. The only other changes are upstream repos repo_upstream, local repo URLs node_repo_local_urls, and default pg_dbsu_uid (DEB packages don’t assign fixed UIDs).

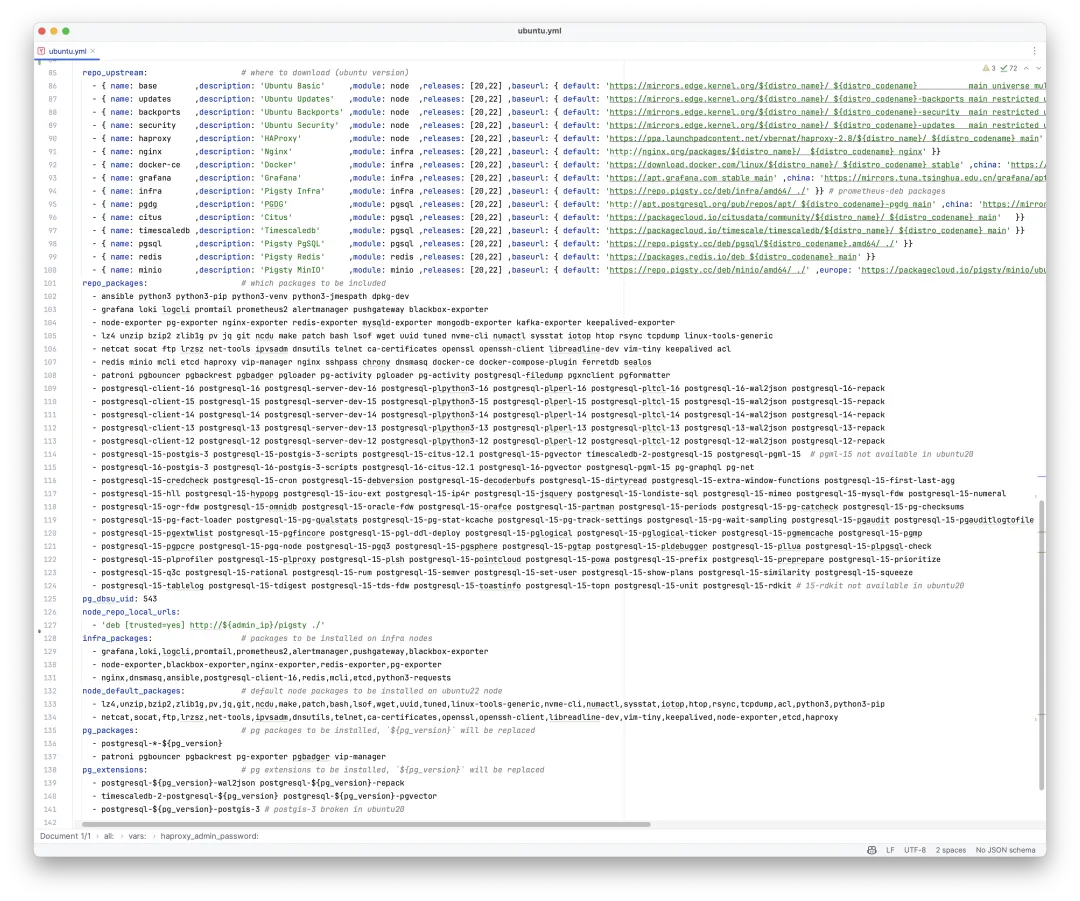

Declarative config file for Ubuntu systems

Users typically don’t need to adjust these parameters, so the Pigsty workflow on Deb systems is virtually identical. In fact, Pigsty’s offline package build template works exactly this way: completing full Pigsty installations on seven different operating systems at once, without any special handling.

New Extensions

#

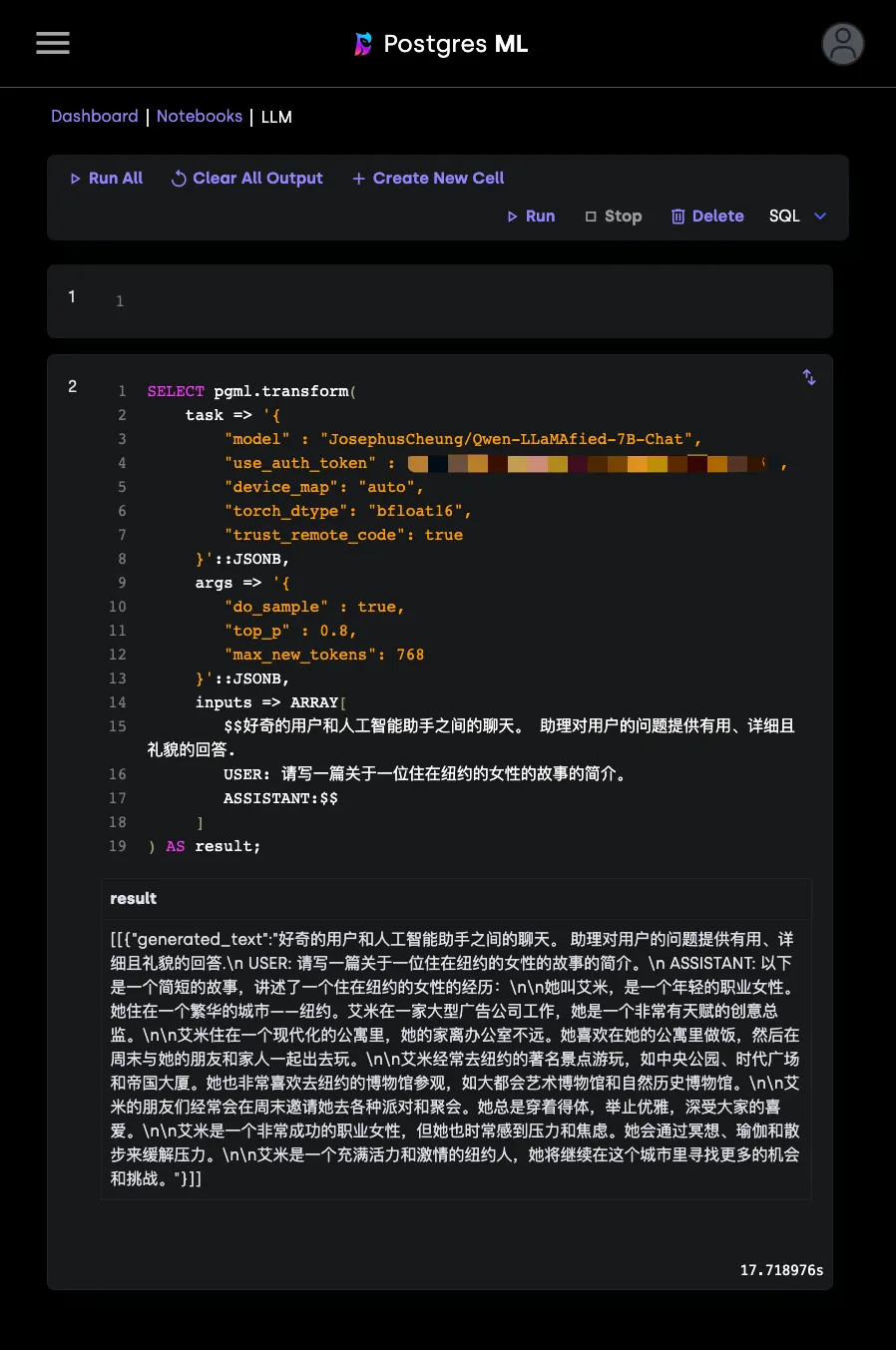

Pigsty v2.5 includes several user-requested extensions. First up is PostgresML. While the previous version already supported PostgresML on EL8/EL9, AI work is almost universally done on Ubuntu — at minimum, CUDA driver installation is much easier.

So in Pigsty v2.5, you can run native PostgresML clusters on Ubuntu. No fiddling with NVIDIA Docker or anything like that — just pip install the Python dependencies and you’re ready to go. Train models with SQL, invoke models, and complete your entire AI workflow within the database!

The second noteworthy extension is pointcloud. Thanks to PostGIS, PostgreSQL has always been a favorite of autonomous driving/EV companies. PointCloud extends PostgreSQL and PostGIS’s power to a new frontier. LiDAR continuously scans surroundings and generates “point cloud” data. The pointcloud extension provides PcPoint & PcPatch data types and forty functions, allowing efficient storage, retrieval, and computation on ultra-high-dimensional point sets. This extension is natively available in the PGDG APT repository, and Pigsty has ported it to EL systems so all users can benefit.

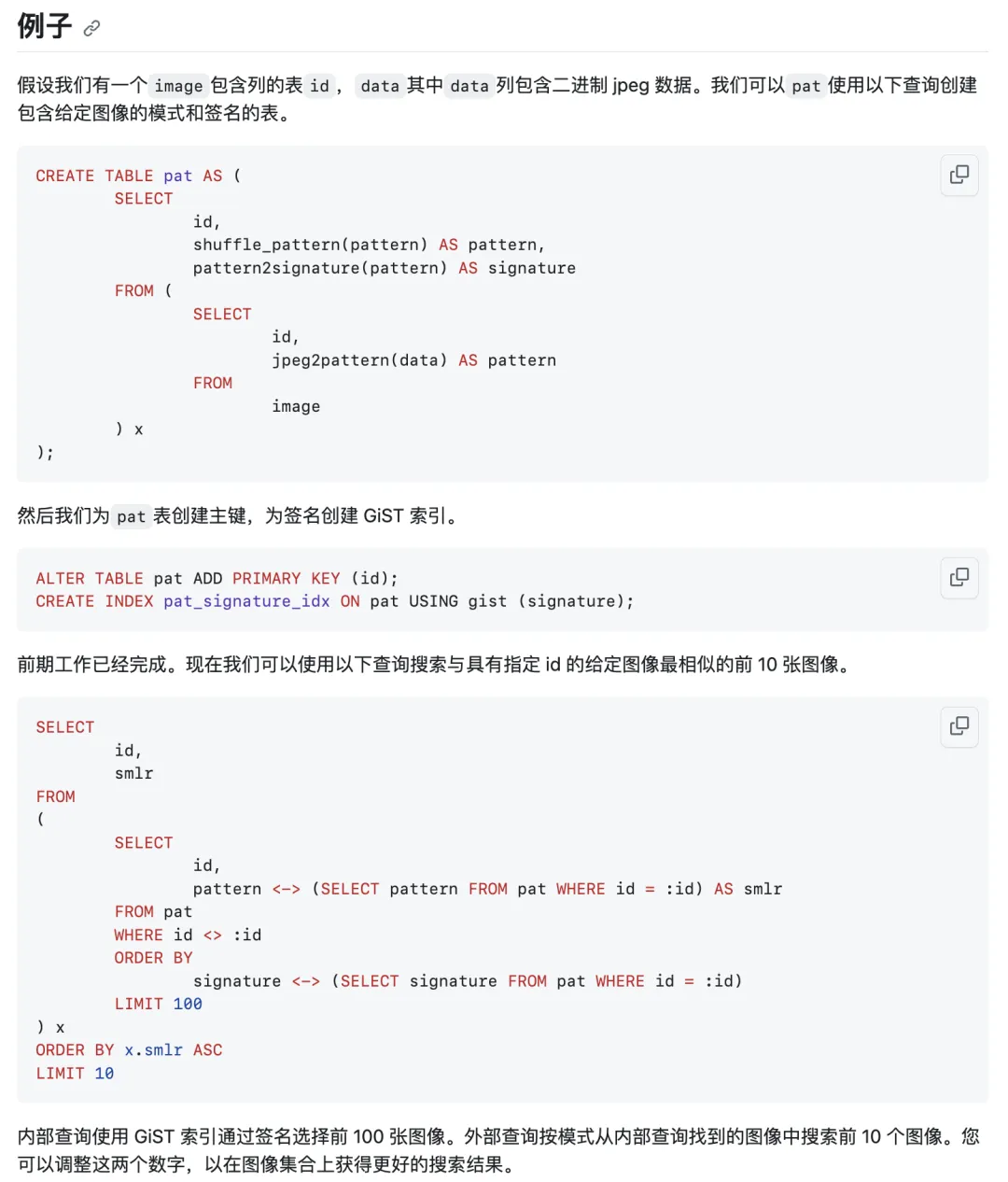

imgsmlr is a reverse image search extension. While many AI models can now encode images into high-dimensional vectors for semantic search using pgvector, what makes imgsmlr interesting is that it requires no external dependencies and can complete all functionality within the database. In the author’s words: “My goal isn’t to provide the most advanced image search method, but to show you how to write a PostgreSQL extension for even non-typical database tasks like image processing.”

It first processes PNG/JPG images using Haar wavelet transform into 16K patterns and 64-byte signature digests, then uses GiST index retrieval on digests for efficient reverse image search. Using imgsmlr to retrieve the 10 most similar images from 400 million random images takes about 600ms.

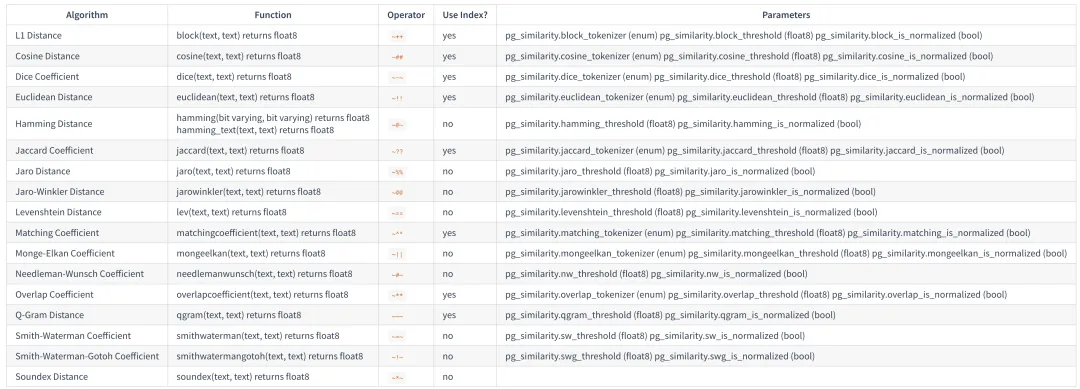

Another interesting extension, pg_similarity, is available by default in Ubuntu/Debian APT repos, and Pigsty has ported it to EL. It provides efficient C implementations of 17 text distance metric functions, greatly enriching search and ranking capabilities. A related plugin is pg_bigm, similar to PostgreSQL’s built-in pg_trgm, except it uses bigrams instead of trigrams for fuzzy search, providing better full-text search support for CJK languages.

Additionally, we’ve updated Supabase support to the latest version: 20231013070755. You can self-host Supabase on EL8/EL9 systems using Pigsty’s PostgreSQL database.

Including PostgreSQL’s built-in extensions, Pigsty 2.5 supports 150+ extensions. Despite this abundance, note that they’re all optional. Pigsty provides pg_repack, wal2json, and passwordcheck_cracklib (EL) for all PostgreSQL major versions, with only the online bloat management extension pg_repack installed by default. Other extensions, if not installed, impose no extra burden on the system.

Monitoring System Updates

#

Pigsty v2.5 brings monitoring system adjustments, updating the long-standing pg_exporter to v0.6.0 with TLS support, fixing two dependency security issues, building ARM64 packages, and using the latest metrics definition files. Additionally, four shared buffer I/O related metrics were added to the pg_query collector, enriching the information in PGSQL Query.

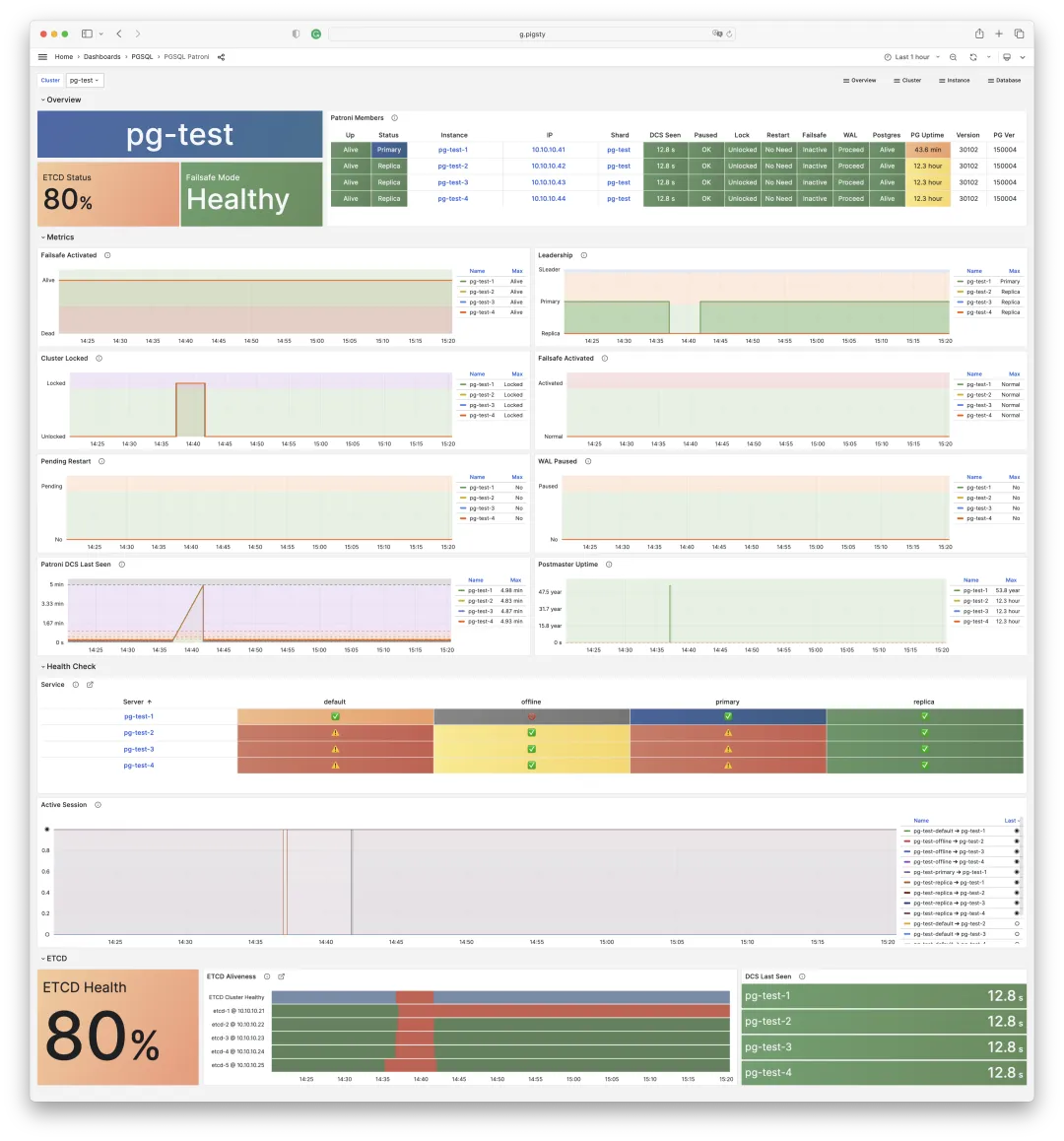

First, the new PGSQL Patroni dashboard provides a complete view of cluster HA status. Very helpful for analyzing historical service health and failover causes.

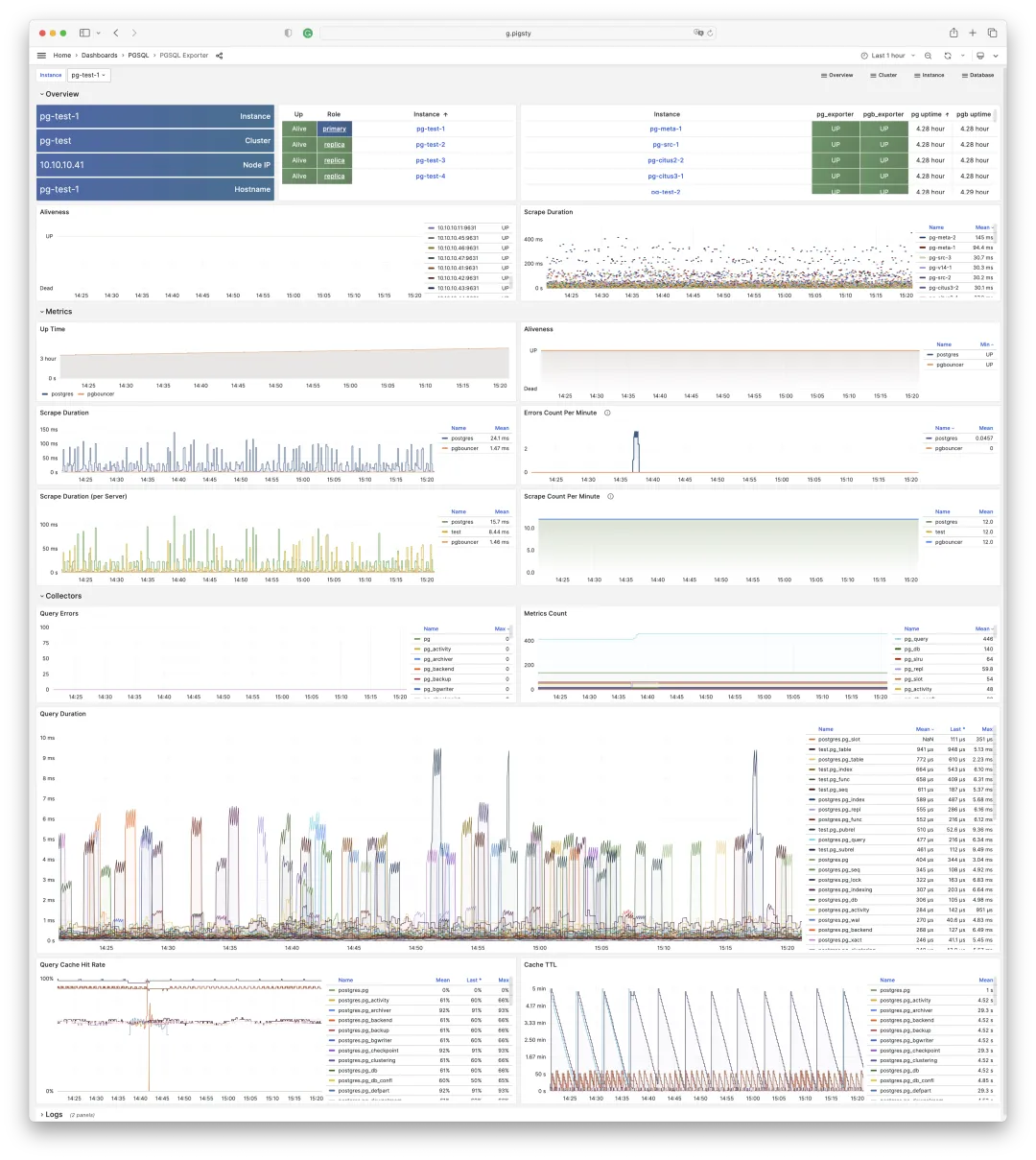

Then there’s PGSQL Exporter, providing detailed self-monitoring metrics and logs for PG Exporter and Pgbouncer Exporter. Useful for optimizing the monitoring system itself.

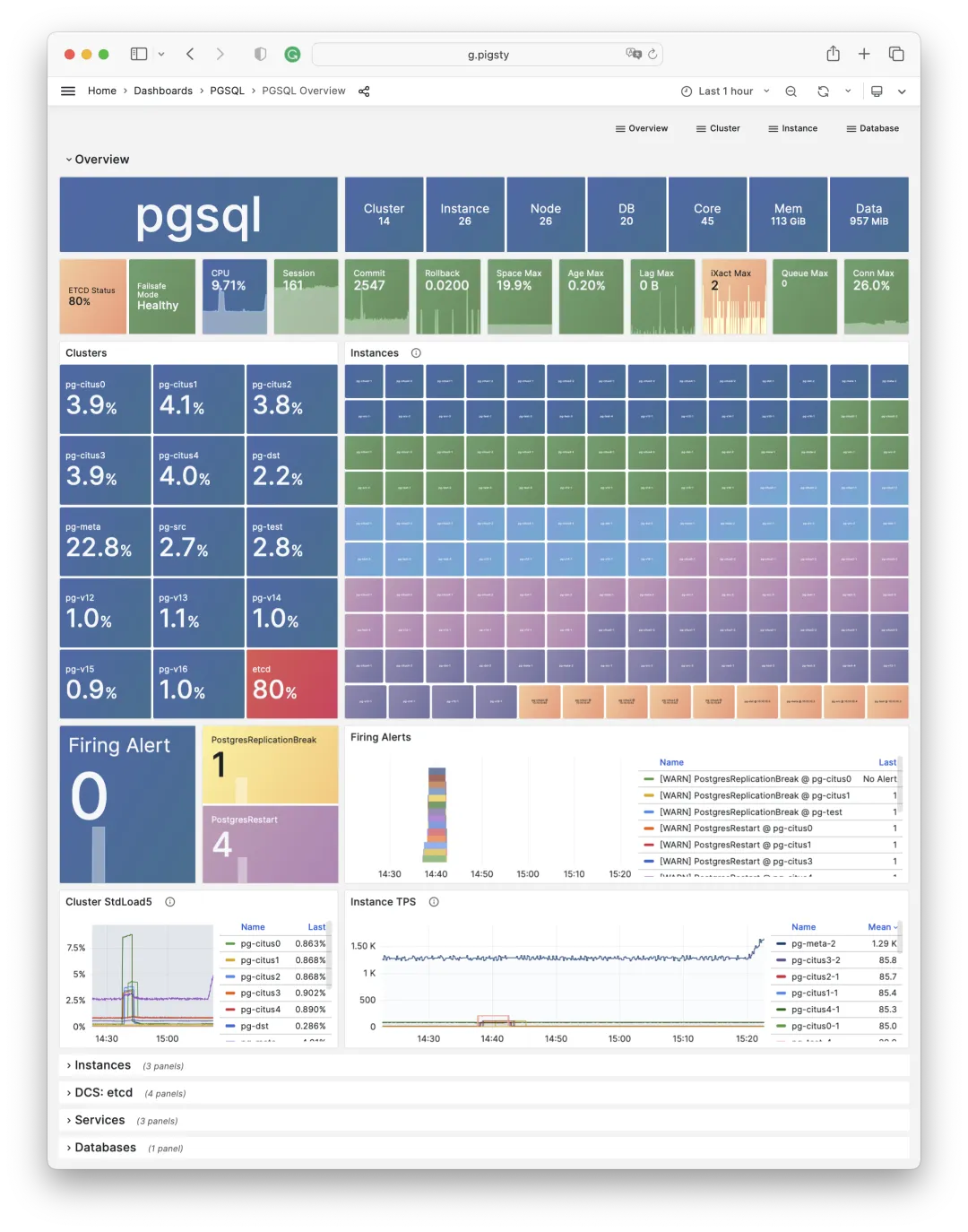

In component navigation panels across various dashboards, you can click Patroni/Exporter indicator tiles to jump directly to component details:

The PGSQL Query dashboard now has five sections: Overview, core QPS/RT metrics, time-differential metrics, call-differential metrics, and percentage metrics. Following macro-optimization methodology:

Reduce Resource Consumption: Lower saturation risk, optimize CPU/memory/IO, typically targeting total query time/IO. Uses dM/dt: metric M differentiated over time (per-second increments).

Improve User Experience: Most common optimization goal. In OLTP, typically targets reduced average query response time. Uses dM/dc: metric M differentiated over call count (per-call increments).

Balance Workload: Ensure proper proportions of resource usage/performance across query groups. Uses M%: percentage of a query class’s metric relative to totals.

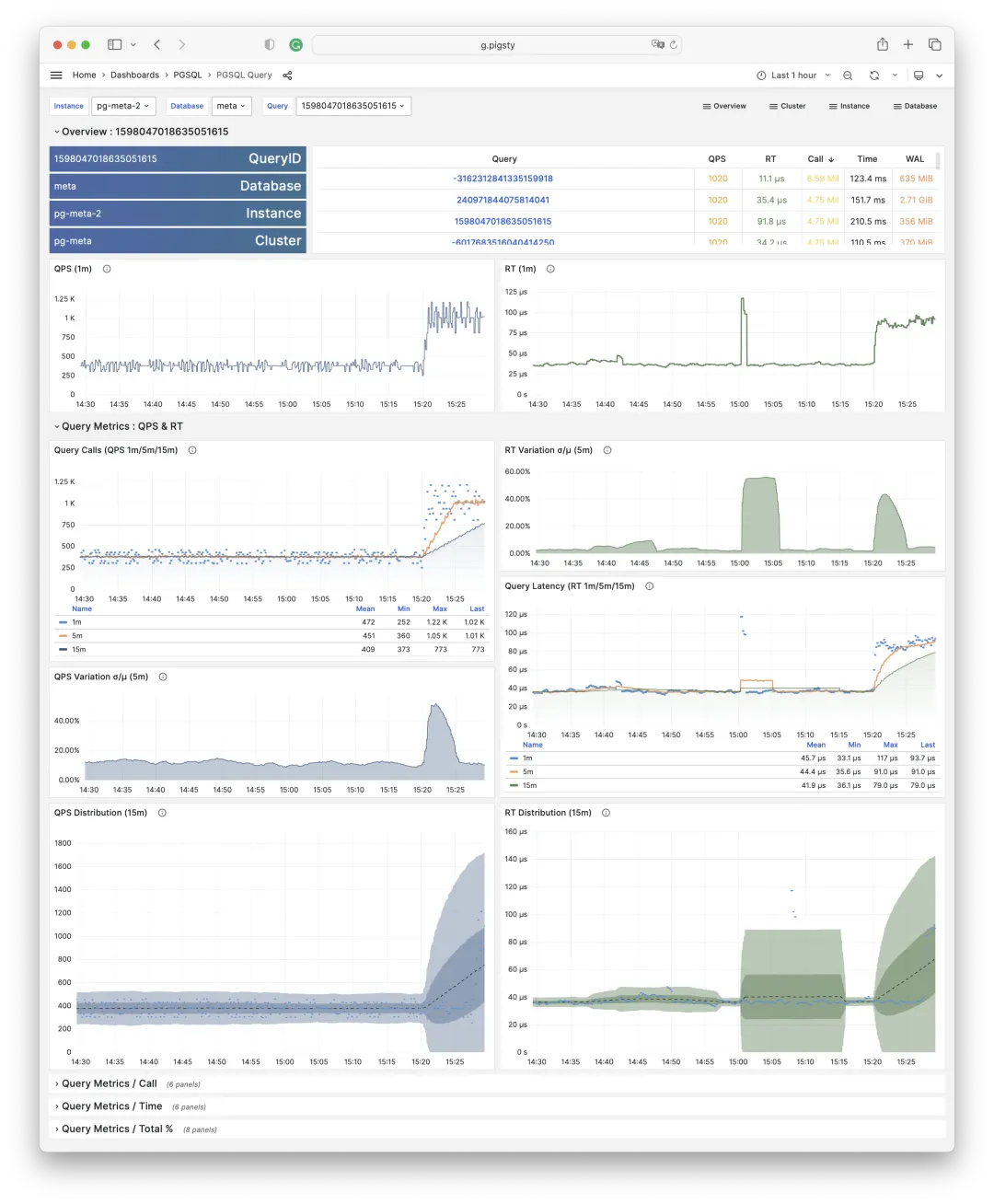

The PGSQL first screen shows the most critical query performance metrics: QPS and RT — plus their 1/5/15-minute averages, jitter, and distribution ranges.

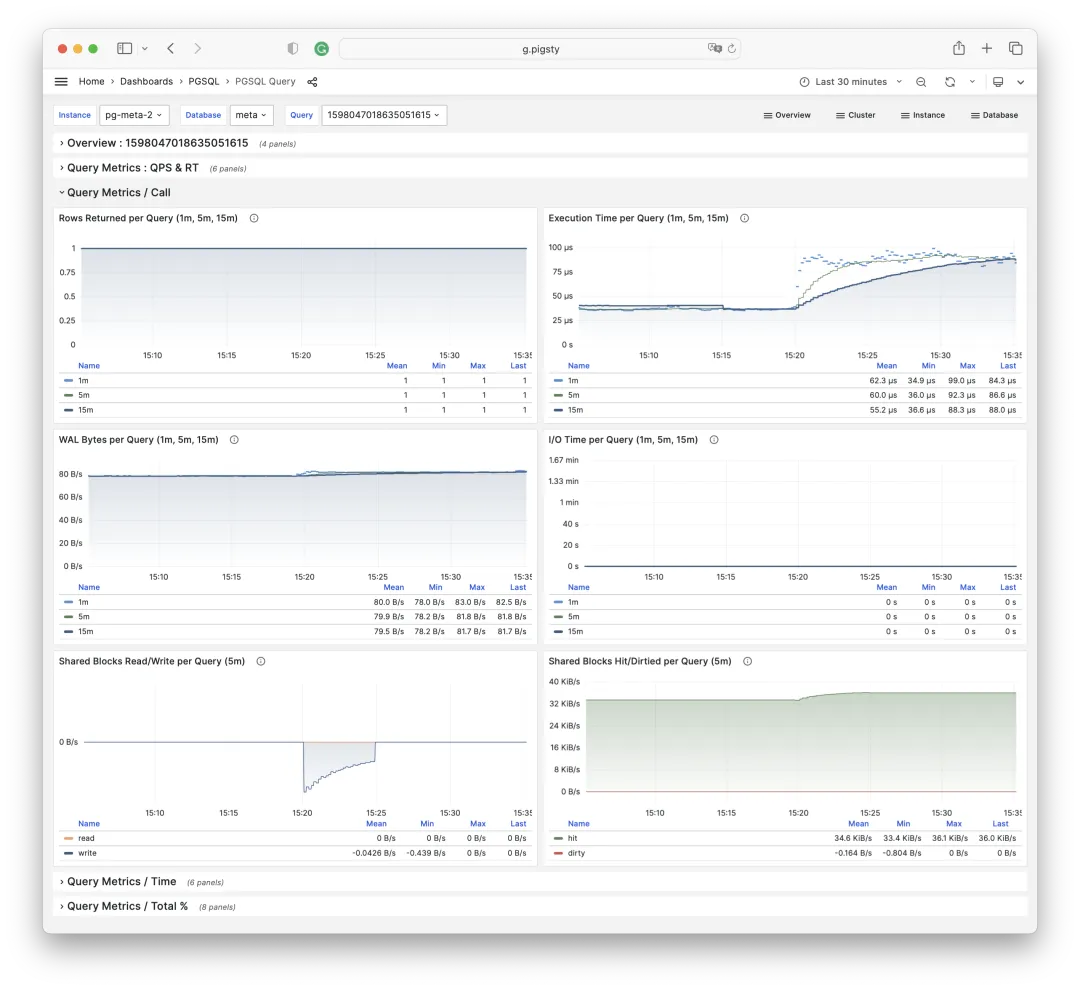

Next are dM/dc metrics for user experience optimization, where M includes:

• Average rows returned per query
• Average execution time per query
• Average WAL size per query
• Average I/O time per query
• Average buffer blocks read/written per query
• Average buffer blocks accessed/dirtied per query

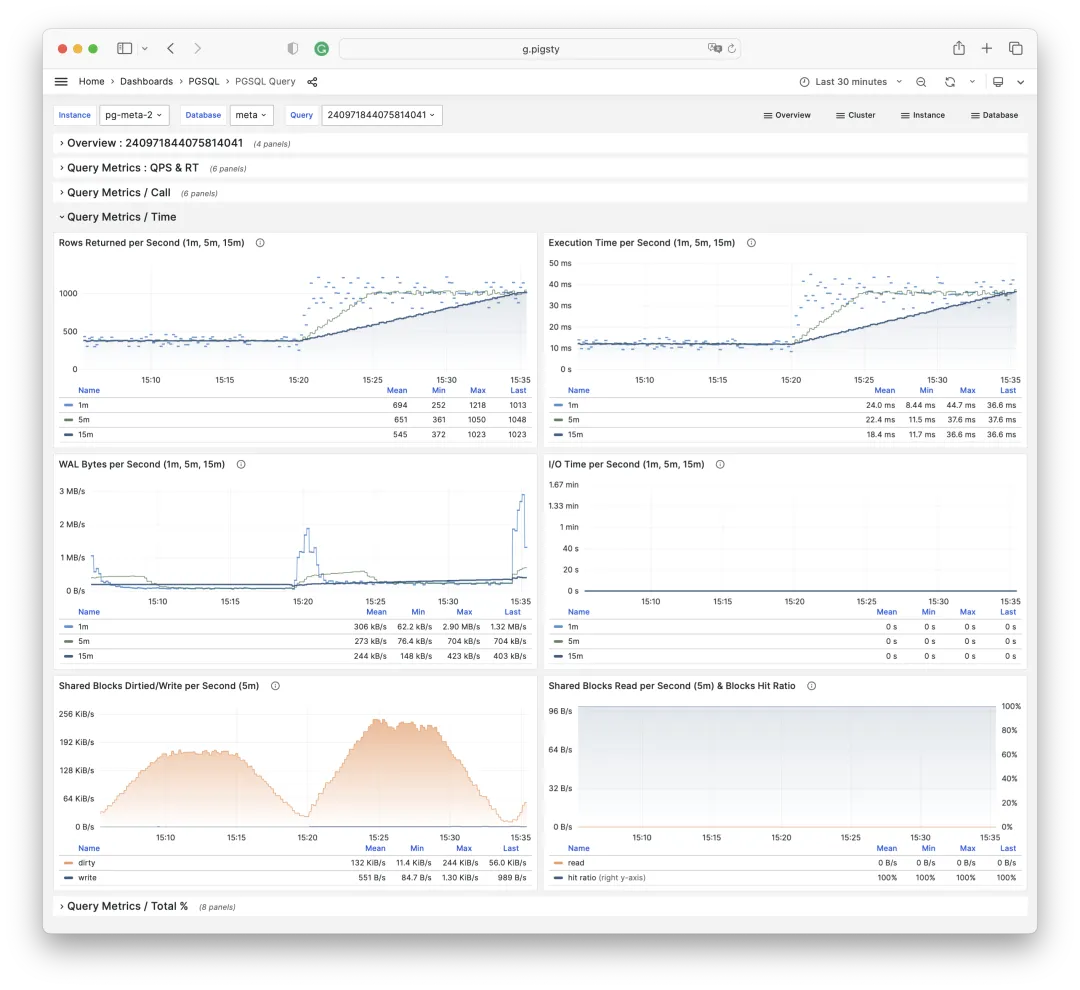

Then dM/dt metrics for resource consumption reduction, with similar M metrics but differentiated over time instead of call count:

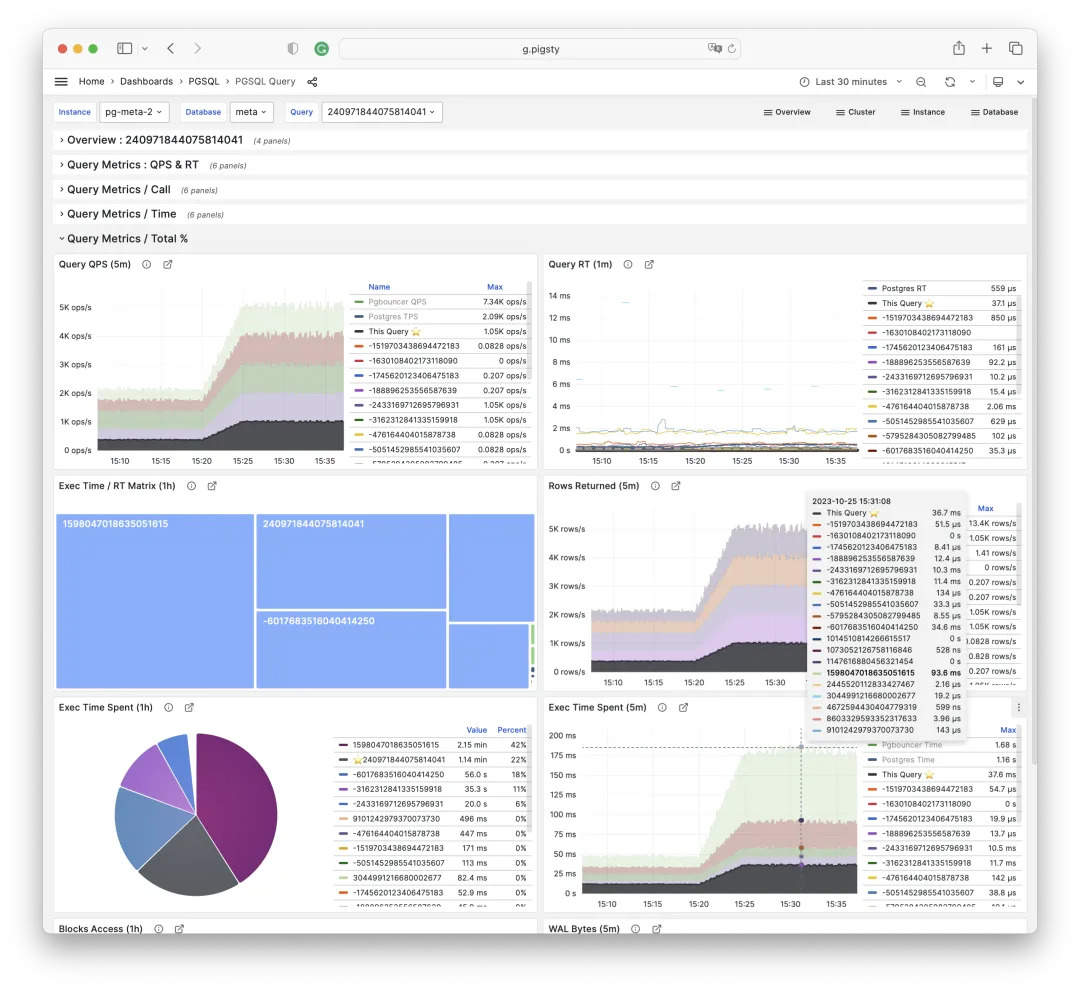

The final section shows %M metrics for workload balancing. Reveals a specific query group’s proportion and relative position in the overall workload, shown in bold. Click specific queries to navigate in-place — very convenient.

Beyond these three dashboards, Pigsty has optimized and fixed many other panels. Many panel info sections now provide more detail: what metrics the panel shows, what problems it solves, etc. We’ve also introduced three new Grafana plugins for CSV/JSON datasources and variable panels.

Release Notes

#

v2.5.0

#

curl https://get.pigsty.cc/latest | bash

Highlights

• Ubuntu / Debian support: bullseye, bookworm, jammy, focal
• CDN repo.pigsty.cc software repository providing RPM/DEB package downloads
• Anolis OS support (compatible with EL 8.8)
• PostgreSQL 16 replaces PostgreSQL 14 as the alternative primary supported version
• New PGSQL Exporter / PGSQL Patroni dashboards, redesigned PGSQL Query dashboard
• Extension updates:
  • PostGIS upgraded to 3.4 (EL8/EL9), EL7 remains on PostGIS 3.3
  • Removed pg_embedding as developer discontinued maintenance, recommend pgvector instead
  • New extension (EL): Point cloud plugin pointcloud support, natively available on Ubuntu
  • New extensions (EL): imgsmlr, pg_similarity, pg_bigm for search
  • Recompiled pg_filedump as PG version-independent package
  • Added hydra columnar storage extension, citus no longer installed by default
• Software updates:
  • Grafana to v10.1.5
  • Prometheus to v2.47
  • Promtail/Loki to v2.9.1
  • Node Exporter to v1.6.1
  • Bytebase to v2.10.0
  • Patroni to v3.1.2
  • pgbouncer to v1.21.0
  • pg_exporter to v0.6.0
  • pgbackrest to v2.48.0
  • pgbadger to v12.2
  • pg_graphql to v1.4.0
  • pg_net to v0.7.3
  • FerretDB to v0.12.1
  • SealOS to 4.3.5
  • Supabase support to 20231013070755

Ubuntu Support Notes

Pigsty supports Ubuntu 22.04 (jammy) and 20.04 (focal) LTS versions with corresponding offline packages.

Compared to EL systems, some parameter defaults need explicit adjustment. See ubuntu.yml for details:

• repo_upstream: Adjusted for Ubuntu/Debian package names
• repo_packages: Adjusted for Ubuntu/Debian package names
• node_repo_local_urls: Defaults to ['deb [trusted=yes] http://${admin_ip}/pigsty ./']
• node_default_packages:
  • zlib -> zlib1g, readline -> libreadline-dev
  • vim-minimal -> vim-tiny, bind-utils -> dnsutils, perf -> linux-tools-generic
  • Added acl package to ensure Ansible permissions work correctly
• infra_packages: All packages with _ replaced by -, postgresql-client-16 replaces postgresql16
• pg_packages: Ubuntu conventionally uses - instead of _, no need to manually install patroni-etcd
• pg_extensions: Extension names differ from EL, Ubuntu lacks passwordcheck_cracklib
• pg_dbsu_uid: Ubuntu DEB packages don’t specify explicit UID, manual specification required, Pigsty defaults to 543

API Changes

Default value changes:

• repo_modules now defaults to infra,node,pgsql,redis,minio, enabling all upstream sources

• repo_upstream changed, now adds Pigsty Infra/MinIO/Redis/PGSQL modular software sources

• repo_packages changed, removed unused karma,mtail,dellhw_exporter, removed PG14 main extensions, added PG16 main extensions, added virtualenv package

• node_default_packages changed, now installs python3-pip by default

• pg_libs: timescaledb removed from shared_preload_libraries, no longer auto-enabled by default

• pg_extensions changed, Citus no longer installed by default, passwordcheck_cracklib installed by default, EL8,9 PostGIS default version upgraded to 3.4

  - pg_repack_${pg_version}* wal2json_${pg_version}* passwordcheck_cracklib_${pg_version}*
  - postgis34_${pg_version}* timescaledb-2-postgresql-${pg_version}* pgvector_${pg_version}*


• All Patroni templates remove wal_keep_size parameter by default to avoid triggering Patroni 3.1.1 bug, functionality covered by min_wal_size

MD5 (pigsty-pkg-v2.5.0.el7.x86_64.tgz) = 87e0be2edc35b18709d7722976e305b0
MD5 (pigsty-pkg-v2.5.0.el8.x86_64.tgz) = e71304d6f53ea6c0f8e2231f238e8204
MD5 (pigsty-pkg-v2.5.0.el9.x86_64.tgz) = 39728496c134e4352436d69b02226ee8
MD5 (pigsty-pkg-v2.5.0.debian11.x86_64.tgz) = e3f548a6c7961af6107ffeee3eabc9a7
MD5 (pigsty-pkg-v2.5.0.debian12.x86_64.tgz) = 1e469cc86a19702e48d7c1a37e2f14f9
MD5 (pigsty-pkg-v2.5.0.ubuntu20.x86_64.tgz) = cc3af3b7c12f98969d3c6962f7c4bd8f
MD5 (pigsty-pkg-v2.5.0.ubuntu22.x86_64.tgz) = c5b2b1a4867eee624e57aed58ac65a80

v2.5.1

#

Following PostgreSQL v16.1, v15.5, 14.10, 13.13, 12.17, 11.22 routine minor version updates.

All important PostgreSQL 16 extensions are now in place (added pg_repack and timescaledb support).

• Software updates:
  • PostgreSQL to v16.1, v15.5, 14.10, 13.13, 12.17, 11.22
  • Patroni v3.2.0
  • PgBackrest v2.49
  • Citus 12.1
  • TimescaleDB 2.13
  • Grafana v10.2.0
  • FerretDB 1.15
  • SealOS 4.3.7
  • Bytebase 2.11.1

• Removed monitor schema prefix from PGCAT dashboard queries (allowing users to install pg_stat_statements elsewhere)
• New wool.yml config template designed for Alibaba Cloud free 99 ECS single-node
• Added python3-jmespath package for EL9 to fix jmespath missing after Ansible dependency update during bootstrap

MD5 (pigsty-pkg-v2.5.1.el7.x86_64.tgz) = 31ee48df1007151009c060e0edbd74de
MD5 (pigsty-pkg-v2.5.1.el8.x86_64.tgz) = a40f1b864ae8a19d9431bcd8e74fa116
MD5 (pigsty-pkg-v2.5.1.el9.x86_64.tgz) = c976cd4431fc70367124fda4e2eac0a7
MD5 (pigsty-pkg-v2.5.1.debian11.x86_64.tgz) = 7fc1b5bdd3afa267a5fc1d7cb1f3c9a7
MD5 (pigsty-pkg-v2.5.1.debian12.x86_64.tgz) = add0731dc7ed37f134d3cb5b6646624e
MD5 (pigsty-pkg-v2.5.1.ubuntu20.x86_64.tgz) = 99048d09fa75ccb8db8e22e2a3b41f28
MD5 (pigsty-pkg-v2.5.1.ubuntu22.x86_64.tgz) = 431668425f8ce19388d38e5bfa3a948c
